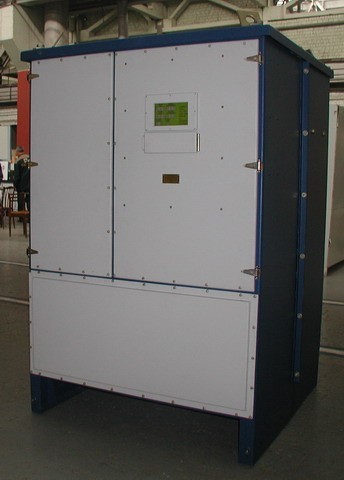

Explosion-proof units designed for operation under explosive atmosphere of type В-ТПЕ-200-230УХЛ4

They are installed in mines, underground mine working, on gas-distribution stations and etc. They provide for proper operation under explosive atmosphere.

Operation conditions.

Climatic environmental factors:

- ambient temperature upper value is 308 K (35C);

- ambient temperature lower value is 263 K (-10C);

- relative humidity upper value is 98% at temperature of 308 K (35C);

- the rectifier should provide for reliable and stable operation after being in inoperative state at temperature ranging from 233 to 333 K (from -40C to +50C).

The rectifier mass (gross) in shipping container, max. 3300 kg.

Overal dimensions (width x depth x height) - 1476 x 1472 x 2304 mm.

Dust-proof version of type

В-ТПП-250-500УХЛ4 IP54

It is ideal to power resistive actively inductive loads under the mode "on-off" with direct unstabilized current. The above loads require rectified voltage regulation. Carbide silicon heaters and electric furnace heating elements are main load.

They provide for highly reliable and long-tern operation under non explosive medium with current conducting dust. The unit maintains high power values under severe conditions.

The rectifier operates and maintains its parameters at ambient temperature ranging from +5 to +50C. Relative humidity upper value is 80% at temperature of 25C.

There are two control modes of the rectifier - remote and local. Remote control is effected either from standard remote control desk or from standard remote control desk from another equipment that is ideal for remote control with control signal "0-10V" ("4-20mA") and de-energized make contact. Local control is effected from control board of the rectifier.

Output voltage smooth build up.

High reliability and longevity is assured by availability of single SPTA set (with automatic equipment panels).

Operation security is effected by availability of built-up rectifier electronic system for protection against short circuits (internal and external); the rectifier operation mode the rectifier operation mode under two-phase load; power thyristors temperature elevation.

An indicator indicates the consumer of rectifier on-state, current overload (more than 110% of rated value).

Duration of guarantee and service life is up to 10 years.

The rectifiers are cooled with forced air cooling. There is no need in auxiliary adjustment on rectifier operation site. It is suffice to connect supply mains and load.

Manufacture and delivery of rectifiers adjusted for other values of output current and voltage are available according to customer's order.

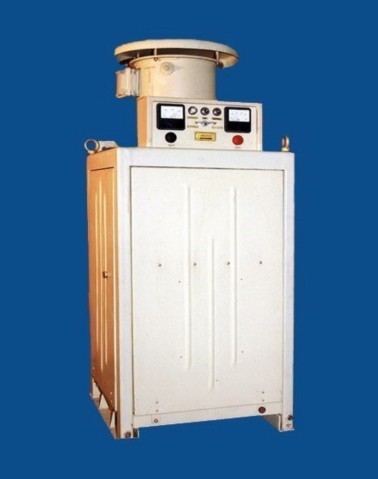

Rectifier units of type ВАКС and ВАКС-М

The rectifier units ideal for supply of power using equipment with rectified current under temperate sea climate, are readily available.

 Static  converters are ideal for converting three-phase alternating current of 220  or 380 V, 50 or 400  Hz into rectified current of 30, 115 и 230V.

Rectifiers for electrolysis and electroplating

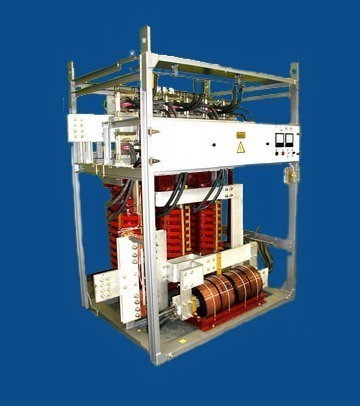

В-ТПВ

Water flow rate – 2 m 3/h.

Supply mains – three-phase 380 V,   50 Hz.

Overall dimensions (width х depth х height) - 1600 х 1200 х 2000 mm.

 Powerful reversible rectifier ideal for electrolysis of rare earth non-ferous metals and electroplatings with regulated stabilized current, has been developed and is readily available.  The rectifier may also be used when operating under active load where high accuracy d.c. stabilization is required.

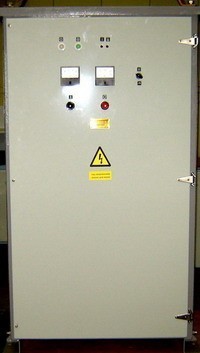

Rectifiers for storage batteries charging В-ОПЕ

Supply mains – single-phase, 220 V, 50 Hz.

Overall dimensions (width х depth х height) – 540 х 400 х 530 mm.

Mass - 85 kg.

The rectifier designed for charging acid- and alkali storage batteries with regulated stabilized current, has been developed and is readily available.  The rectifier may be used when operating under active load where high accuracy direct current stabilization is required.

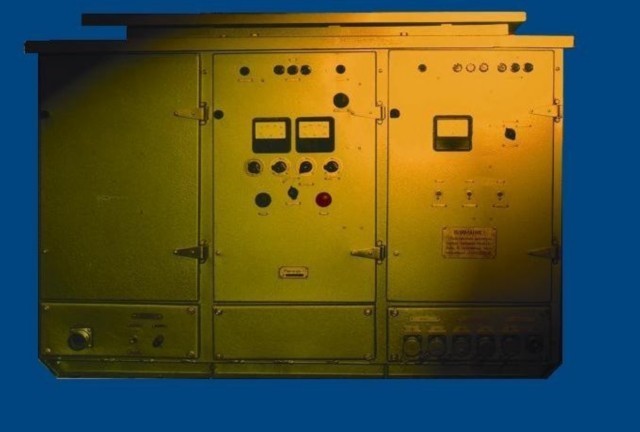

Welding rectifier units of type "ВАК"

Supply mains – three phase, 220, 380 V, 50 Hz.

Overall dimensions (width х depth х height) - 573 х 550 х 940  mm.

Mass – 150 - 190 kg.

 The rectifiers convert three-phase a.c. 220 or 380 V,  50 Hz  into direct one and are ideal for storage batteries charging, using equipment power with direct current, welding by current ranging from  100 to     390 А at voltage of 25-30 V under the mode of reclosing of  60% during welding cycle for 5 min.

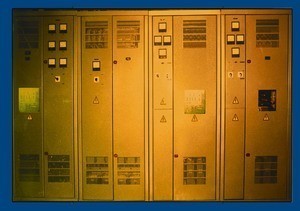

Static converters "СПЧС"

Supply mains – three-phase, 380 V, 50 Hz.

Overall dimensions (width х depth х height) - 800 х 4450 х 2900 mm.

Mass – max.  4500 kg

They are designed for process plants with synchronous – hysteresis engines (СГД) and provide for:

- prolonged electric supply with current of  increased frequency of СГД mounted in batteries;

- stepwise sections of СГД start at voltage and frequency of 220 V-1/3 Frat, 300 V-2/3 Frat, 400 V- Frat, with use of capacitor movable starter;

-  СГД overexcitation with subsequent voltage step down up to the level of 250 … 380 volts;

- voltage automatic overexcitation and regulation at converter output when if only one of  СГД sections drops out of synchronism;

- runaway up to synchronous  rotation frequency  (load pick up) of СГД that are braked during its run out at frequency of their rotation that is equal to 1/3 Frat and beyond;

- electric supply reservation of 100 % load of adjacent converter when it becomes inoperative.

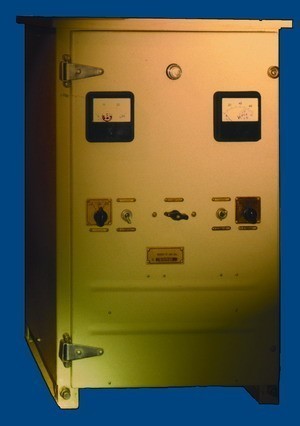

Charging rectifier units of type "ВАКЗ"

Supply mains – three-phase, 220, 380 V, 50 Hz.

Overall dimensions (width х depth х height) – 450 х 430 х 765 mm.

Mass - 98 kg.

They are ideal for storage batteries charging.

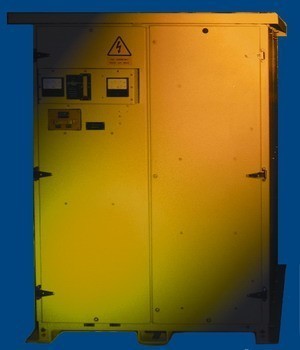

Rectifier units of type "ТПС"

Supply mains – three-phase, 380 V, 50 Hz.

Overall dimensions (width х depth х height) -  620 х 510 х 1300 mm.

Mass - 280 kg

They are ideal for electrolytic cathode prevention against corrosion, as well as for supply of electrolysis water desalinating plants.

Rectifiers for water purificationof types В-ТПЕРА, В-ТПЕ

Supply mains 3 х 380 V х 50 Hz with neutral wire.

Overall dimensions (width х depth х height) - 600 х 400 х 1200 mm.

The rectifiers basic field of application is water purification from iron – and other metals ions. The rectifiers may be also used under other types of active load where high accuracy of direct current stabilization is required, including sewage purifying plant.
